KCT8775HE
6GHz 802.11be RF Front-End Module
产品介绍
KCT8775HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax/be WLAN systems operating in the 5.9-7.1GHz range. KCT8775HE integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.
KCT8775HE is a 5V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. A DC voltage output power detector and a digital enable control are also integrated.

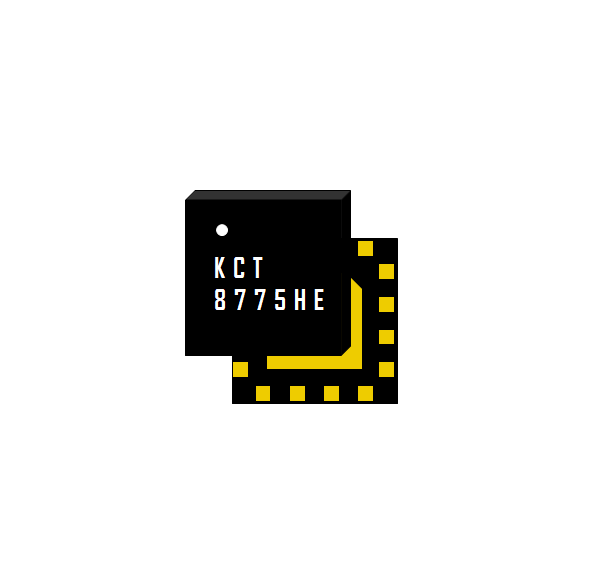

KCT8775HE is assembled in a compact, low-profile 3x3x0.57mm 16-lead MIS package. KCT8775HE is the ideal RF front-end solution for implementing high-power WLAN systems supporting multiple standards including 802.11a/n/ac/be.
产品规格

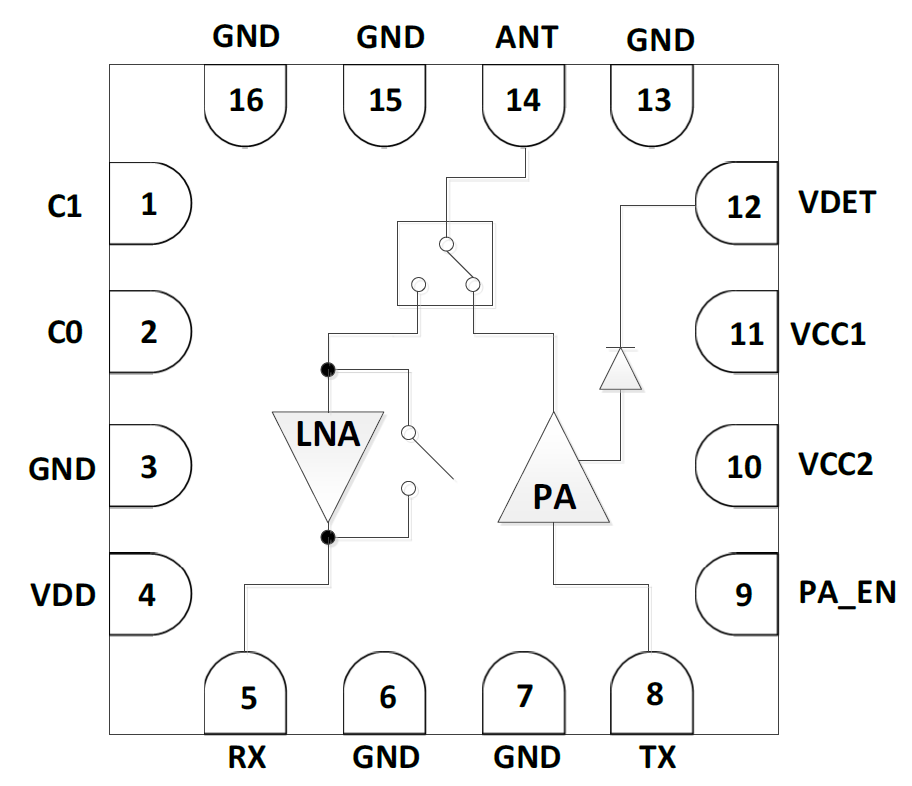

Integrated high performance 802.11be PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated DC power detector
Transmit gain: 30.0dB at 5V
Receive gain: 14.0dB at 5V
Noise figure: 1.9dB at 5V
Output power:
+15.5dBm @ -43dB DEVM, EHT320/MCS13, 5V
+19.5dBm @ -40dB DEVM, HE160/MCS11, 5V
+22.0dBm @ -35dB DEVM, VHT80/MCS9, 5V
+23.0dBm @ -30dB DEVM, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: MIS-16L 3mm x 3mm x 0.57mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
