KCT8245SD
2.4GHz 802.11ax RF Front-End Module
产品介绍

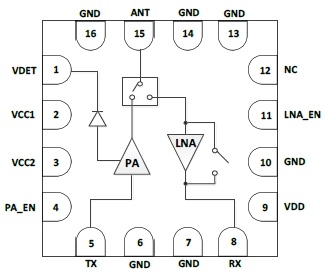

KCT8245SD is a fully integrated 802.11b/g/n/ac/ax WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.
KCT8245SD is a 5V supply voltage power amplifier, a DC voltage output power detector and a digital enable control are also integrated.
KCT8245SD is assembled in a compact, low-profile 2.5×2.5×0.55mm 16-pin QFN package. It is the perfect RF Front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.
产品规格
Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch
Fully-matched input and output
Integrated Power Detector
Transmit gain: 31.0dB at 5V
Receive gain: 15.0dB at 5V
Noise figure: 2.5dB at 5V
Output power:
+20.5dBm @ -43dB DEVM, HE40/MCS11, 5V
+21.5dBm @ -40dB DEVM, HE40/MCS11, 5V
+23.0dBm @ -35dB DEVM, VHT40/MCS9, 5V
+24.0dBm @ -30dB DEVM, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal External Components Required
Small package: QFN-16L, 2.5mm x 2.5mm x 0.55mm (MSL3, 260℃per JEDEC J-STD-020)
RoHS and REACH Compliant
