KCT8571HE
5GHz 802.11ax RF Front-End Module
Introduction

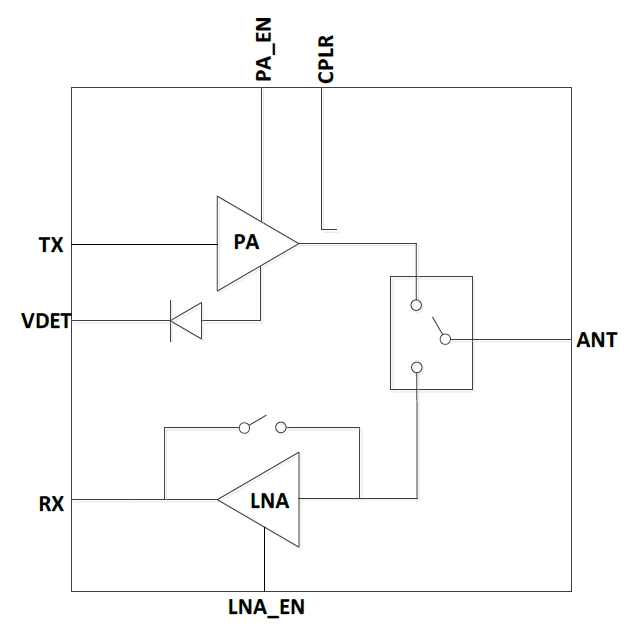

KCT8571HE is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax/be WLAN systems operating in the 5.15-5.85GHz range. It integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.
KCT8571HE is a 3.3V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. It is integrated with a DC voltage detector and a RF power detector from coupler which are both intended to accurately monitor the output power of PA.
KCT8571HE is assembled in a compact, low-profile 3x3x0.55mm 16-lead QFN package, which is an ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax/be.
Specifications
Integrated high performance 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated RF & DC power detector
Transmit gain: 30.0dB at 3.3V
Receive gain: 16.5dB at 3.3V
Noise Figure: 1.7dB at 3.3V
Output power:
+16.0dBm @ -43dB DEVM, EHT160/MCS13, 3.3V
+17.5dBm @ -40dB DEVM, HE160/MCS11, 3.3V
+19.0dBm @ -35dB DEVM, VHT80/MCS9, 3.3V
+20.0dBm @ -30dB DEVM, HT20/MCS7, 3.3V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L, 3mm x 3mm x 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH compliant
